Self-retracting textile belt, modular and easy to maintain, user weight from 40 - 140 kg, for vertical applications

• Easy and economical maintenance thanks to modular design and two drop indicators
• 20-year service life thanks to energy-absorbing inlet damper, which provides the best possible protection for the appliance housing
• Space-saving storage and optimum handling thanks to the special design of the housing

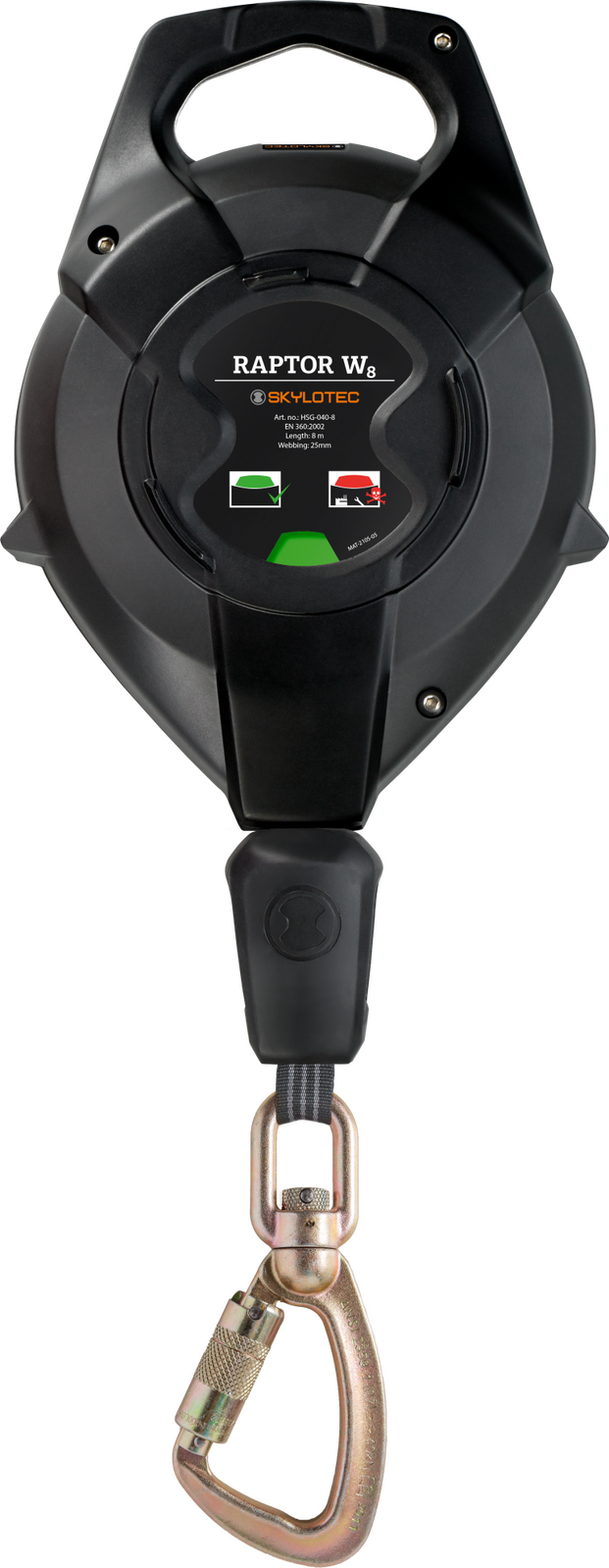

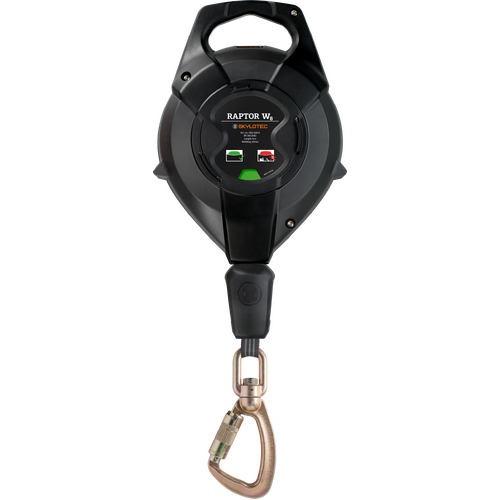

PRODUCT INFORMATION "RAPTOR W"

The RAPTOR W retractable type fall arrester with self-retracting textile strap and automatic blocking function allows safe work at height and depth.

RAPTOR W has a modular design so that all components can be replaced individually, which reduces inspection times and maintenance costs. An energy-absorbing inlet damper protects the device housing and the internal mechanics, so that continuously occurring impacts can be reduced and hand injuries can be excluded when pulling in the rope.

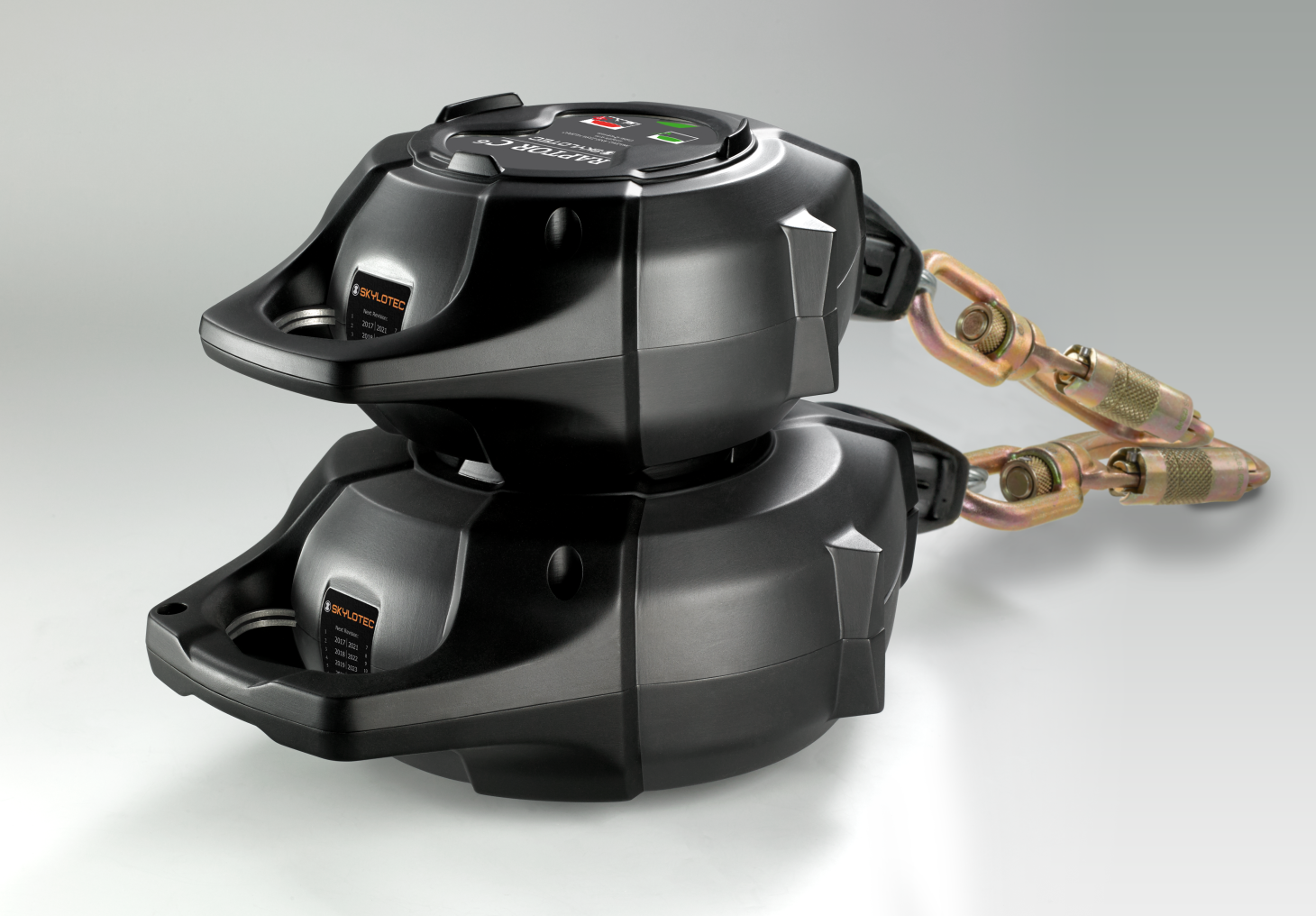

The retractable type fall arrester has two fall indicators visible to the user, which indicate the device's functionality even from the outside. A red indicator warns the user as soon as the device needs to be checked. The user is thus protected from a product that is no longer operational and additional time can be saved during the annually prescribed inspection. The sophisticated housing design also allows space-saving and device-friendly storage.

RAPTOR W is certified according to EN 360:2002 and secures one person at a maximum user weight of 140 kg. The maximum service life is 20 years.

SPECIFICATIONS

• Maximum lifetime 20 years

• Min. user weight 40.00 kg

• Max. user weight vertical 140.00 kg

• Max. user weight horizontal 0.00 kg

• Max. number of persons 1

• Edge approved No

• Material Stainless Steel, Steel, Aluminium, Polyester

• Rope length 8.00 m

• Standards EN 360:2002

• E-class number 40-02-01-03

• Customs tariff number 84798997

• Colour Black

• Net weight 4.56 kg

• Gross weight 4.56 kg
