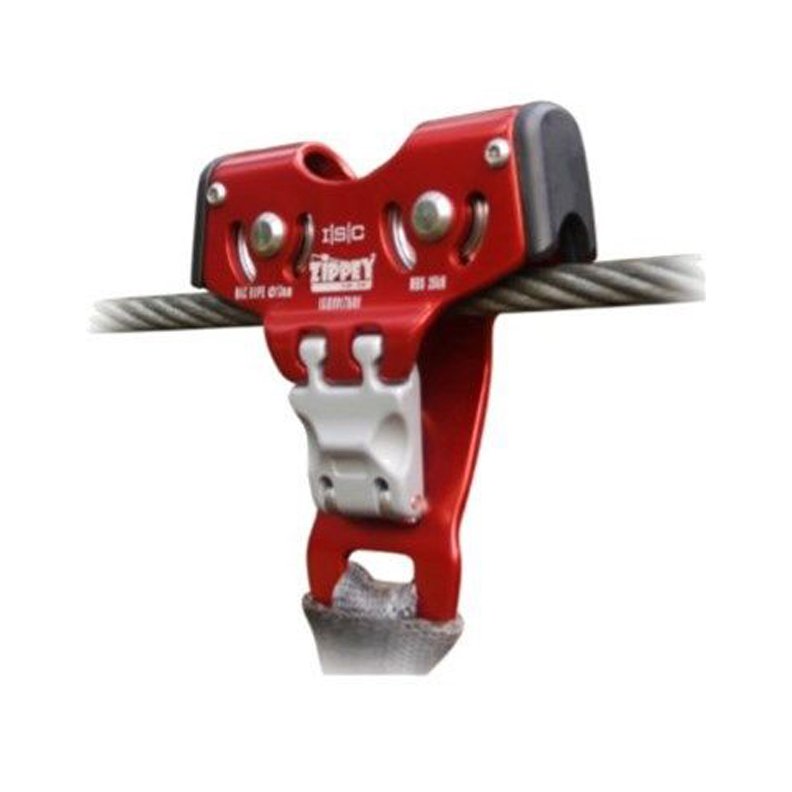

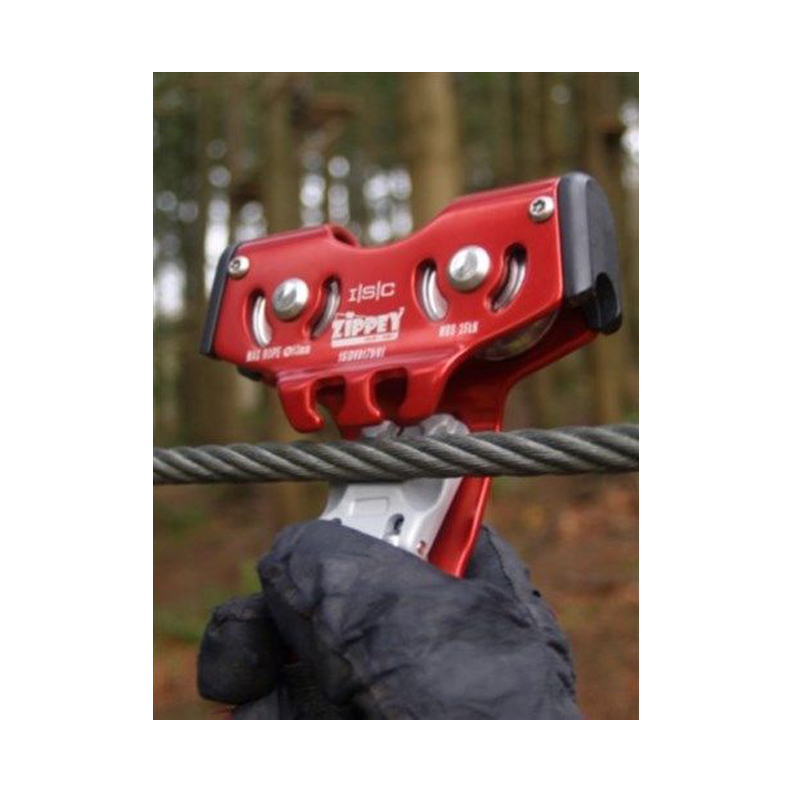

Zippey Clip'n'Zip Trolley

Having consulted zipline operators from around the world throughout the development of the Zippey, we have succeeded in incorporating all the positive features needed to overcome the challenges faced by the industry.

Zippey is manufactured from high-spec 4mm aluminium plate, has a forged Aluminium gate and Stainless Steel wheels; all of which offer the best weight to performance ratio on the market. The Zippey trolley weighs 450g (1.0lb) yet has an MBS of 25kN (5620lbf) and therefore exceeds the 2260kg (5000lb) rating required by US standards, as well as being fully CE approved.

RP074:

Optimal Speed Range   40-50mph/64-80kph

Max Recommended Speed   64mph/103kph

It is essential to select a trolley which will be appropriate for the intended speed of the zipline.  Please see the speed ranges noted above.  We also recommend that builders/operators trial a small number of trolleys in order to ensure their suitability. Please note that the speeds listed above are used as a guideline only, due to the many variables, such as:

  • Quality/ smoothness of the cable
  • Distance of the run
  • Rider weights
  • Environmental factors (e.g. salt spray near coasts or slate grit near quarries)
  • Ambient temperature
  • Maintenance regime

The above variables will also affect the lifespan of the Bearings

Technical Information

Compatible with steel cable diameter (mm) 8-13
Number of persons 1
(MBS) Minimum Breaking Strength (kN) 25
(MBS) Minimum Breaking Strength (lbf) 5620
EZYiD Available on request
Wheel material Stainless steel
Body finish Anodised
Weight (grams) 450
Weight (ounces) 16
Height (mm) 154
Height (inches) 6
Width (mm) 131
Width (inches) 5
Thickness (mm) 46
Thickness (inches) 1 1/2

Approved Standards

EN12278

(RP074A1)

SKU RP074A1
Brand ISC
Shipping Weight 0.4850kg
Shipping Width 0.180m
Shipping Height 0.100m
Shipping Length 0.220m
Shipping Cubic 0.003960000m3
Unit Of Measure ea
