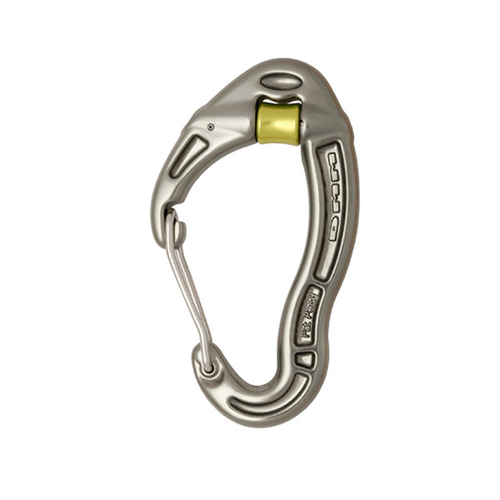

A non-locking connector with an integrated pulley wheel that can be used to create lightweight hauling systems.

~ Integrated pulley wheel for reducing friction
The pulley wheel reduces friction and increases movement efficiency. It can combat rope drag and decrease rope wear. The Revolver can also create mechanical advantage in a lightweight hauling system.The pulley wheel is functional with loads up to 11kN.

~ Wire gate for maximum weight saving
Wire gates are the lightest gate type available, and resist freezing shut in cold conditions.

~ Small gate notch reduces snagging
Wire gate carabiners require a gate notch to achieve their full strength rating. Our notches are minimised while remaining functional, to reduce snagging on other equipment.

~ I-Beam construction for optimum strength to weight ratio
I-Beam construction reduces carabiner weight without compromising strength. It is achieved through hot forging, which allows metal to be formed in complex shapes that improve functionality.

Technical Specifications
Product Name: Revolver
Product Code: A238
Colour: Titanium/Green
Dimensions: 59 x 103mm
Weight: 51g
MBS (Major Axis): 24kN
MBS (Minor Axis): 7kN
MBS (Gate Open): 9kN
Gate Opening: 24mm
Certification: EN 12275:2013 B, UIAA121:2009 Class B


Brand DMM
Shipping Weight 0.1000kg
Shipping Width 0.080m
Shipping Height 0.040m
Shipping Length 0.140m
Shipping Cubic 0.000448000m3
Unit Of Measure ea
