Product Code Size (mm) WLL Transverse Load Tonne Finish Weight
359110 10mm 0.23t 0.06 Zinc Dichromate 0.11kg


It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.

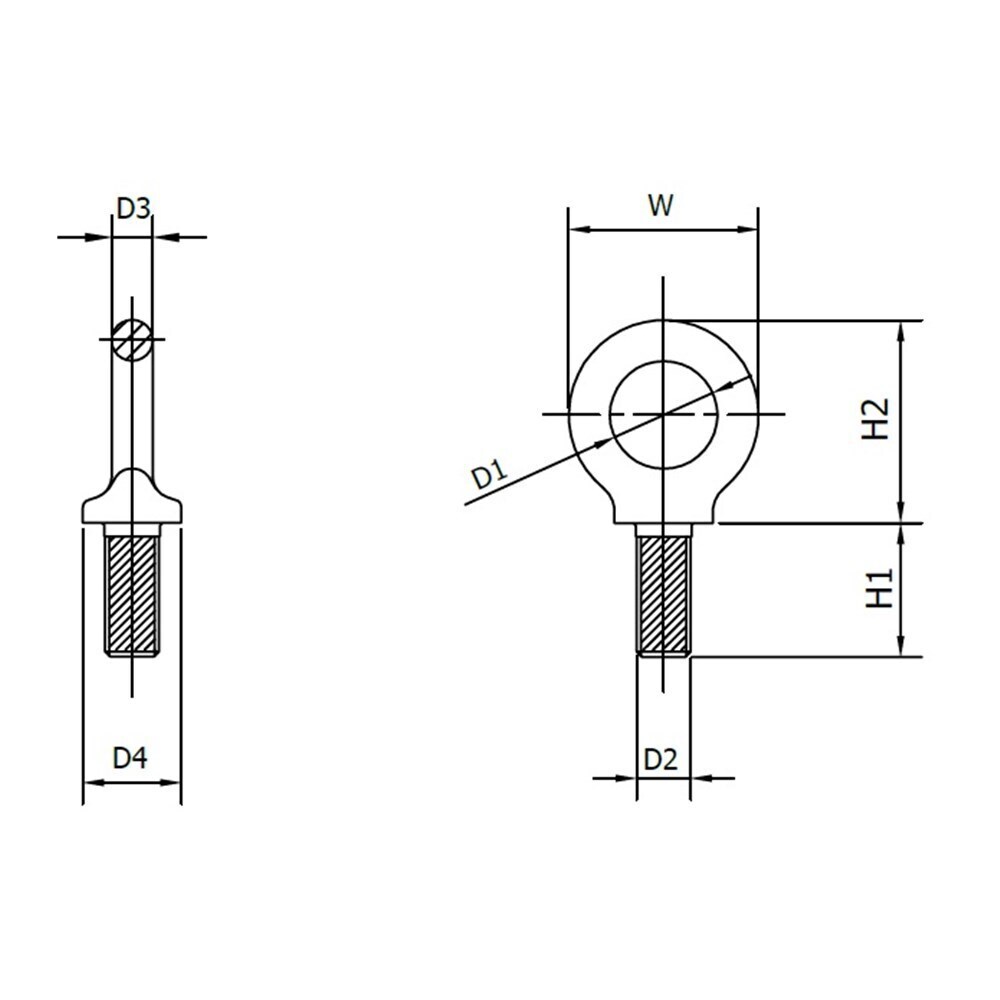

Product Code Size (mm) W H1 H2 D1 D2 D3 D4
359110 10mm 45mm 17mm 45mm 25mm 10mm 10mm 25mm

(359110)

SKU 359110
Brand BEAVER
Shipping Weight 0.1000kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.080m
Shipping Cubic 0.000320000m3
Unit Of Measure ea
