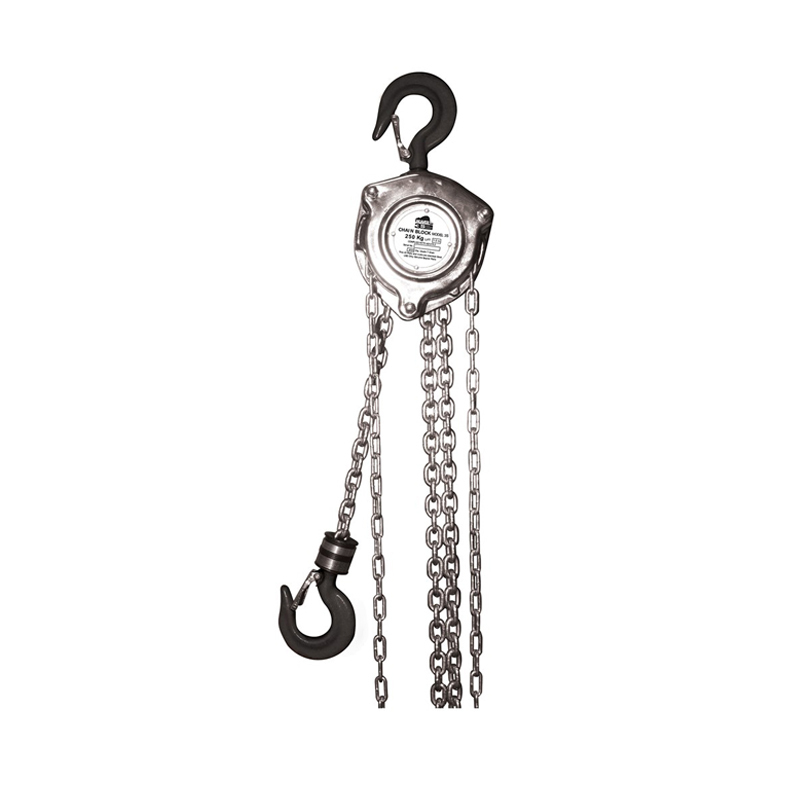

Beaver 3S industrial chain blocks are colour coded to match international lifting standards for fast and accurate identification of WLL The Beaver 3S Industrial Chain Block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts and bearings. The load chain is made of high resistance, Grade 80 Alloy Steel, black finish, heat treated, calibrated and marked according to International Standards ISO 3077 and ISO 1834. Complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard All Beaver Chain Block gears are fitted with industrial Roller bearings. Strong and engineering designed gear on Ratchet gear part to ensure maximum performance and security. Machined and heat treated gears, offering better durability and longer life cycle. Superior Weston type friction braking system that works with load pressure and incorporates high strength twin synchronized pawls for additional safety ensuring that it cannot be free wheeled, extending the product life. The top and bottom hooks come with cast/heavy duty latches. Top and bottom hooks fitted with ball bearings to allow rotation under load. Every Beaver 3S Industrial Chain Block is operationally tested to its rated capacity and is supplied with a Beaver test certificate, relating to its stamped identification side plate. Beaver ‘ID’ plates and rivets are supplied in stainless steel and non conductive material in order to avoid dangerous sparking, making them ideal for underground mining. Specifications Product Code: 503025 Rated Capacity kg: 250 Colour Code: Grey Standard Lift Metre: 1.5 No. of load chain falls: 1 Effort to lift full load kg: 300 Headroom H mm: 230 Diameter of load chain mm: 4x12 Dimensions A mm: 110 B mm: 100 C mm: 18 Net Weight kg: 3.5


SKU 503025
Shipping Weight 4.0000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.300m
Shipping Cubic 0.018750000m3
Unit Of Measure ea
